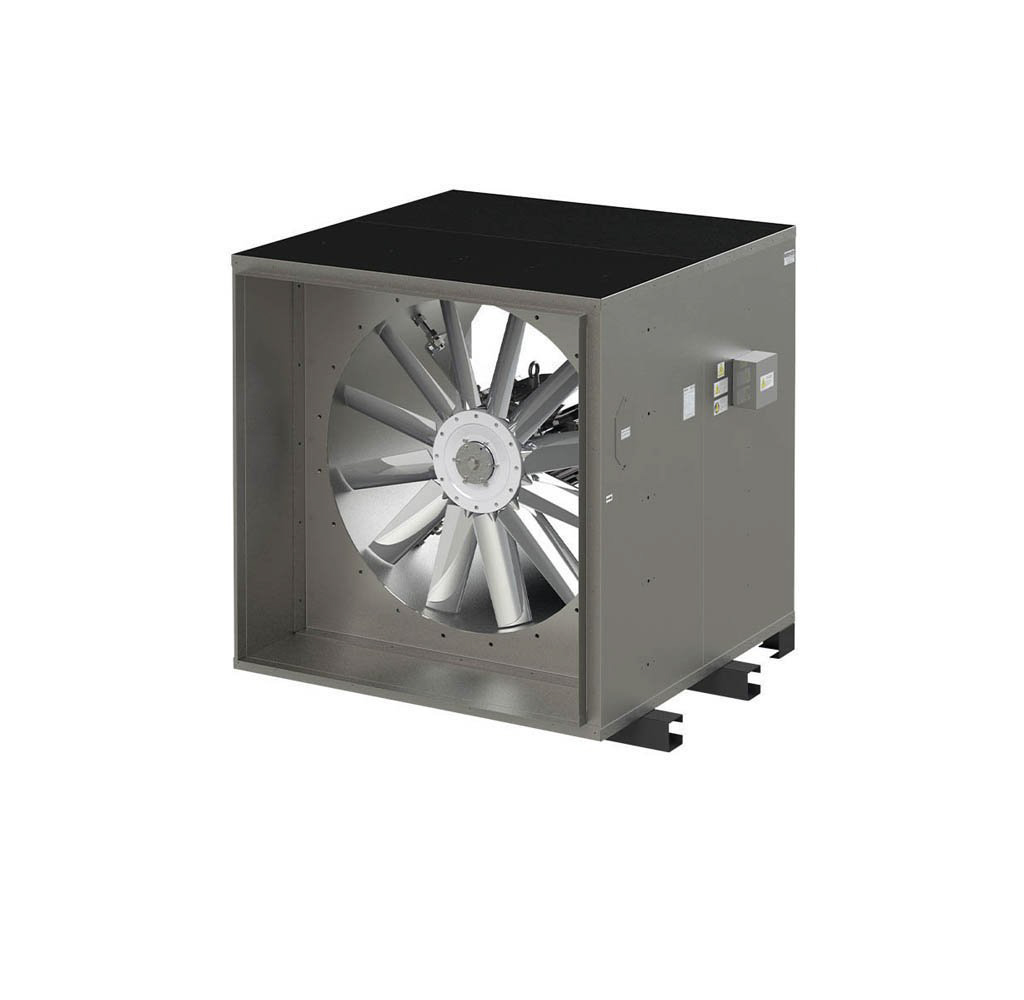

CABINET TYPE SMOKE EXHAUST FANS
Overview
Axial Smoke Exhaust Fans with Casing Units are fire resistant fans used in car parks and subway ventilation projects. The best matching fan is supplied in the wide range by selecting several blade- hub combinations and adjustable blade angles. All equipment is easily accessible by the service door. Double skinned casing covered by 50 mm rock wool provides acoustic and thermal insulation.
Features
F300 & F400 certified axial smoke exhaust fan harmonized with EN12101-3
Full size from Ø 400 mm to Ø 1.400 mm diameter
Hot dip galvanized sheet metal fan casing and galvanized sheet outer casing
Cast aluminum adjustable blade angle impellers
Aerodynamic profiled impellers allow high efficiency and low noise
Die cast aluminum alloy fan hubs
Optimum capacity obtained by different blade-hub combinations besides adjustable blade angels
50 mm rock wool insulation
IP 67 terminal box is placed out of the outer casing
Electrical motors with IP 55 and H class insulation
400V, 3 phase, 50 Hz
Operating temperature at 300°C for 2 hours or 400°C for 2 hours
Accessories
NRDO Circular Back Draft Damper For Axial Fans
ACD Inspection Hatch
Frequency Inventers
